FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN

FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN

FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN
FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN
FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN
FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN

Цена
Узнать цену


Количество
шт



Смотрите также


Войти и заказать
Описание товара

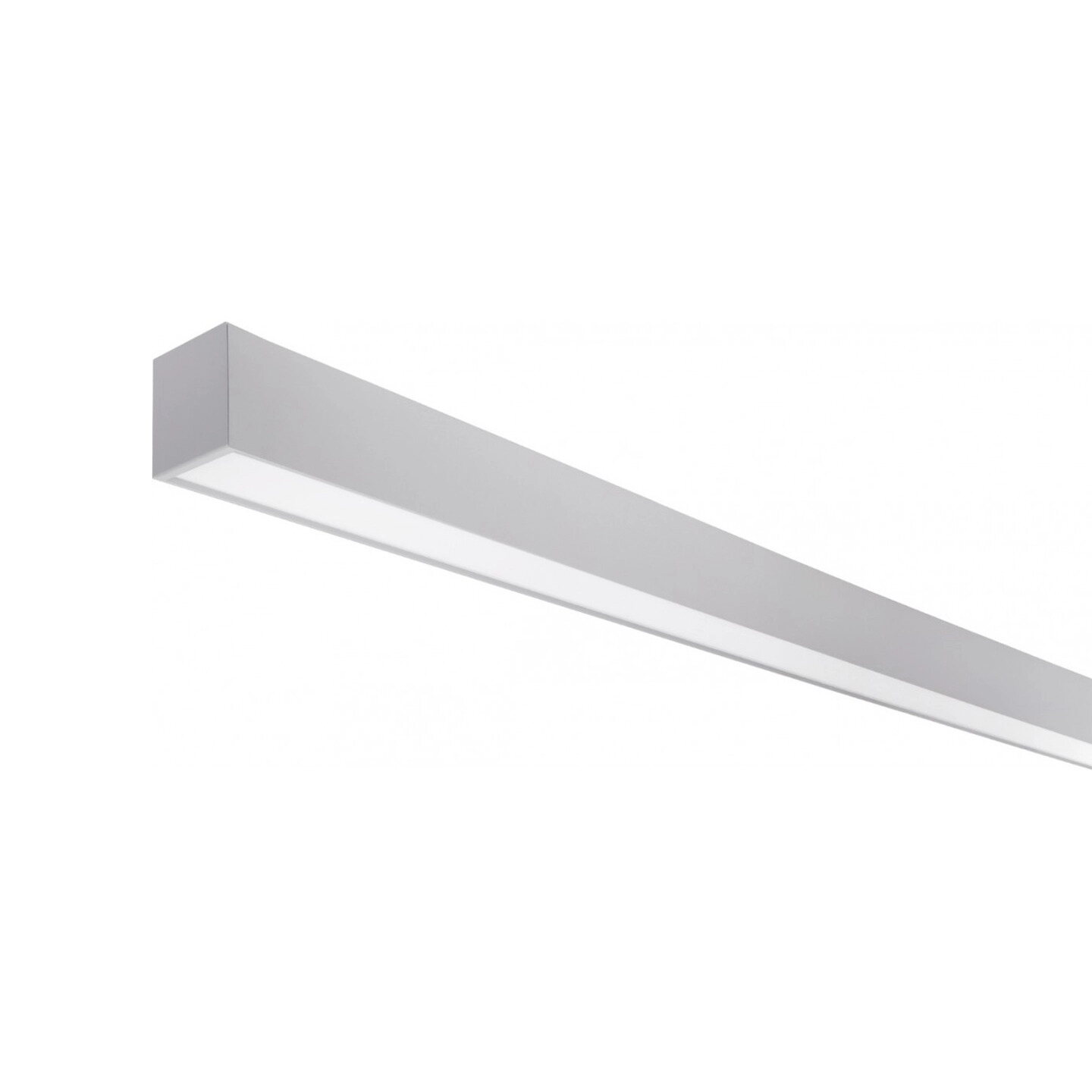

Stylish aluminium-bodied LED linear luminaire for general indoor lighting applications

FL-DECORA is an LED linear luminaire designed for general lighting in offices, commercial spaces and public buildings. The product family includes luminaires of various lengths, which can be mounted directly to the ceiling by screwing through the mounting holes in the luminaire housing or suspended from the ceiling using separately ordered suspension wire kits. With an IP40 protection rating, FL-DECORA is intended for use in dry indoor environments and is not suitable for damp or extremely dusty conditions.

FL-DECORA luminaires are equipped as standard with microprismatic optics (UGR ≤ 19) that reduce discomfort glare, making them particularly suitable for general lighting in offices and other workspaces. The luminaires also feature a DALI-2-compatible dimmable driver as standard, allowing lighting levels to be adjusted according to specific needs.

Applications and suitability

The FL-DECORA product family is ideal for offices, meeting rooms, classrooms, corridors, lobbies and other communal areas. In addition to the standard DECORA models, DECORA L and DECORA LL versions are available for continuous linear lighting installations. You can find the L and LL variants in the product folder Continuous luminaires

Accessories and compatibility

The FL-MTG KIT-SUSI suspension wire kit (order code 10021171) is available separately for FL-DECORA luminaires, allowing them to be suspended from the ceiling. The suspension height is adjustable up to a maximum of 1.5 metres.

Identification details
Product code FL-DECORA-2953-67W-840-DPRZ-LT80-DA-1LIN
Order code 10021324
Photometric specifications
Rated power 66,7 W
Luminous flux 8142 lm
Luminous efficacy 122,1 lm/W
Correlated Colour Temperature (CCT) 4000 K
Colour rendering index CRI / Ra ≥ 80
Colour consistency SDCM ≤ 3

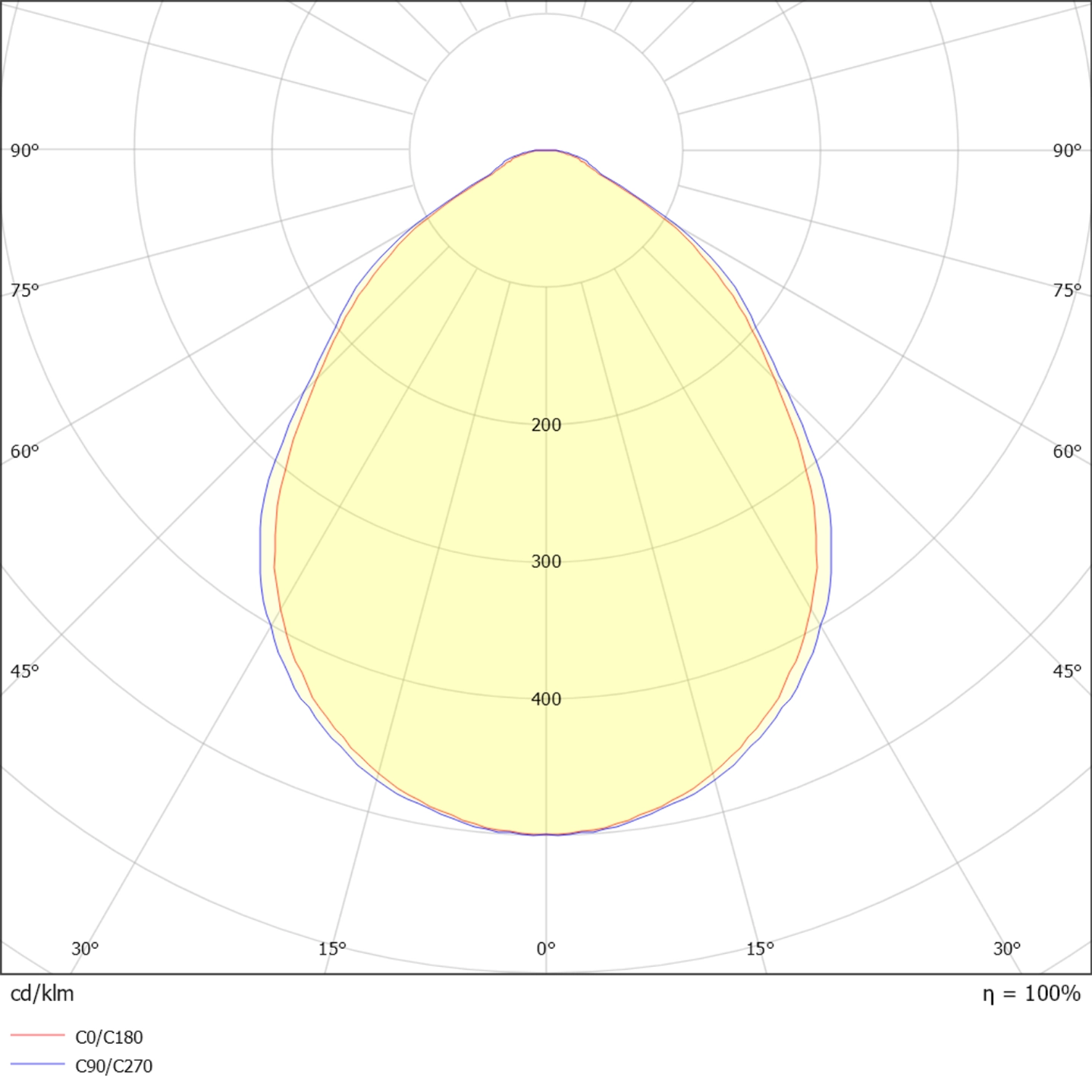

Light distribution / optics DPRZ-LT80, mikroprisma
Beam angle ~90 °
Unified glare rating UGR ≤ 19
Photobiological risk group RG0 (IEC/EN 62471)
Electrical specifications
Rated voltage / supply voltage 220–240 V AC
Frequency 50/60 Hz
Lighting control DALI
Power factor Pf > 0,85
Electrical protection class I
Surge protection 320 V AC, 2 h
Connection 3x2x2,5 mm², läpivienti yläpuolella
Through wiring 1LIN, 1-vaiheläpijohdotus erillisillä 0,5 mm² DALI-ohjausjohtimilla
Construction and installation

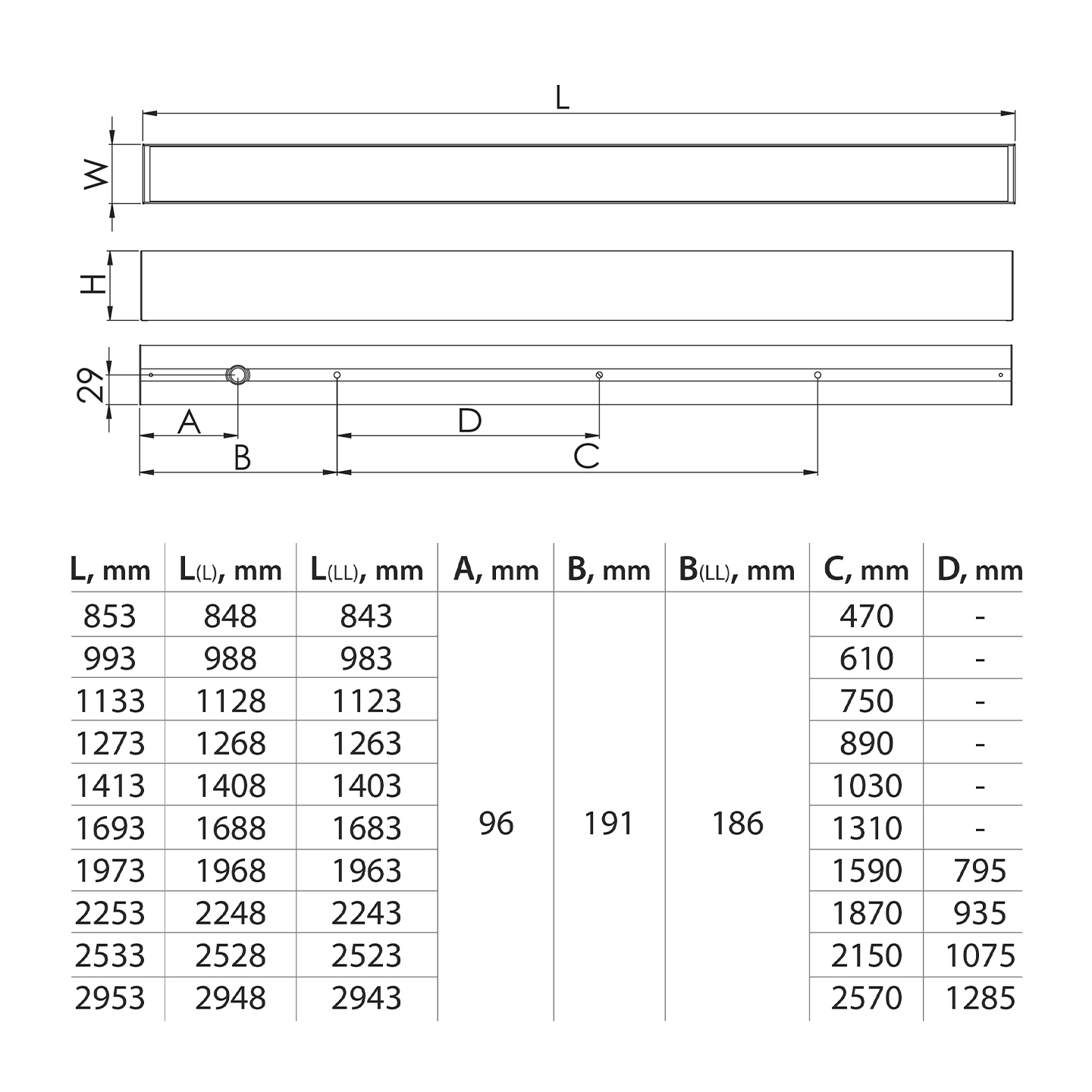

Dimensions (WxLxH) 2953x59x69 mm
Weight 5,0 kg
Mounting method Pinta-asennus, ripustus lisävarusteena
Housing material Alumiini
Surface finish Pulverimaalaus
Housing colour RAL 9006
Glare shield /diffuser material PC (polykarbonaatti)
Operating conditions and protection
IP rating IP 40
IK rating IK 05
Operating temperature range -15…+35 °C
Lifetime and documentation
Declared lifetime L80B10 >100 000 h
Warranty 5 v
Compliance CE, UKCA, RoHS

Body colour
RAL9006S


Control / Dimming
DALI


CRI + CCT
840


Height (mm)
69


Length (mm)
2953


Nominal Power (W)
66,7


Product category
Jatkuva valaistus, Toimistovalaisimet


Width (mm)
59


Вес
5 kg
(с торговой упаковкой 5,5 kg)


Приложения
DECORA-2953-67W-840-DPRZ-LT80-DA.ldt
Finlight_Datasheet_FL-DECORA-Family_20261028-1_Tuloste.pdf
