FL-ECL-2.9W-24V-840-60D-ETL/CE

FL-ECL is a compact and energy-efficient luminaire designed for electrical switchboards and cabinets, as well as industrial auxiliary rooms and control rooms. Thanks to its IP44 and IK10 ratings, it is also suitable for use in wet areas and, for example, in crane machinery spaces where the luminaire is exposed to external stress. In addition to the CE marking, the luminaire has ETL certification, making it suitable for use in the North American market.

The low nominal power of the FL-ECL ensures low operating costs. However, thanks to its high energy efficiency, the luminaire produces a good light output (415 lm), which is sufficient for illuminating most technical spaces. The luminaire is equipped with a linear lens, which focuses the light output on the desired target. It is available with optics that provide either a 60- or 90-degree beam angle.

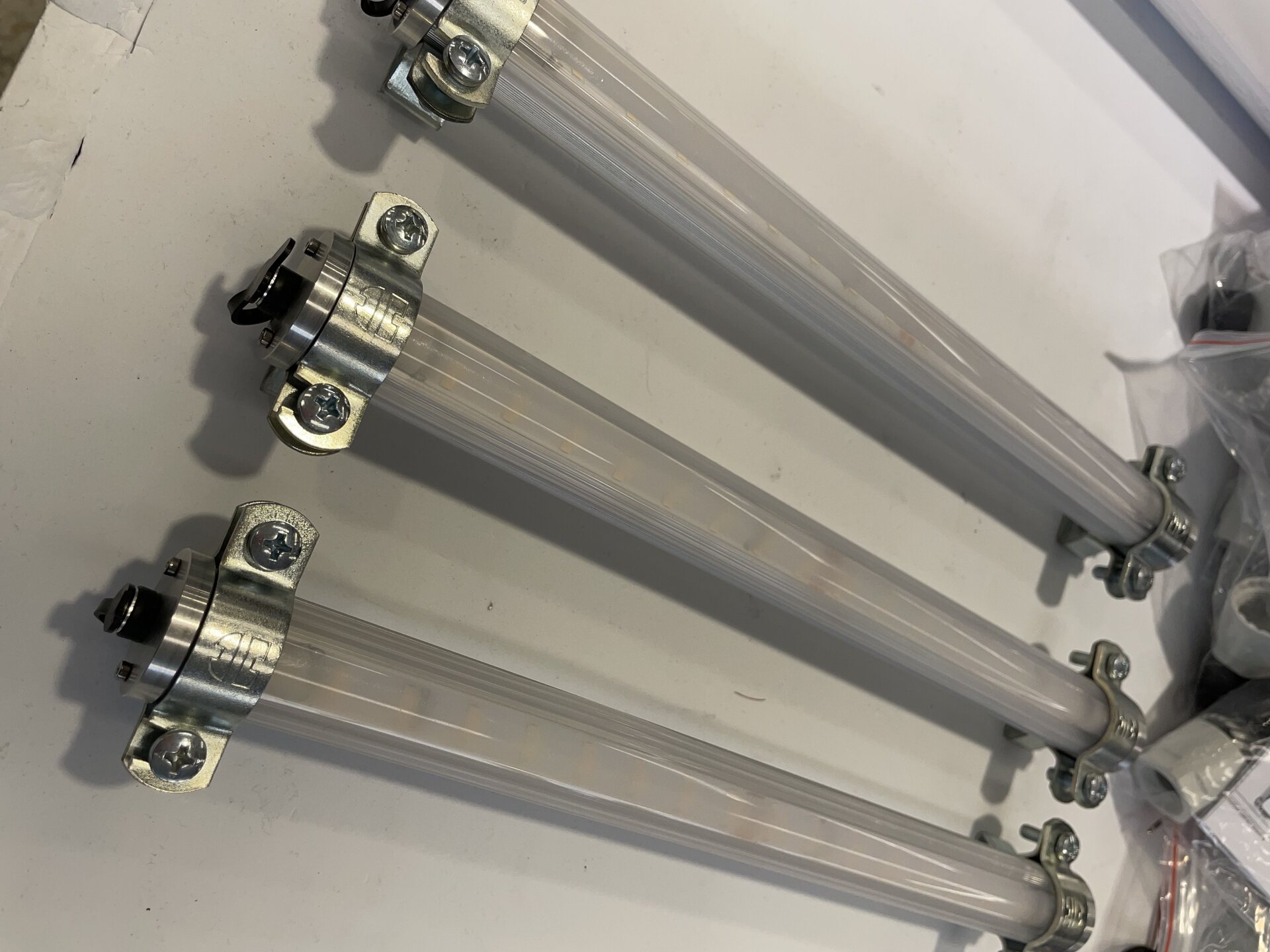

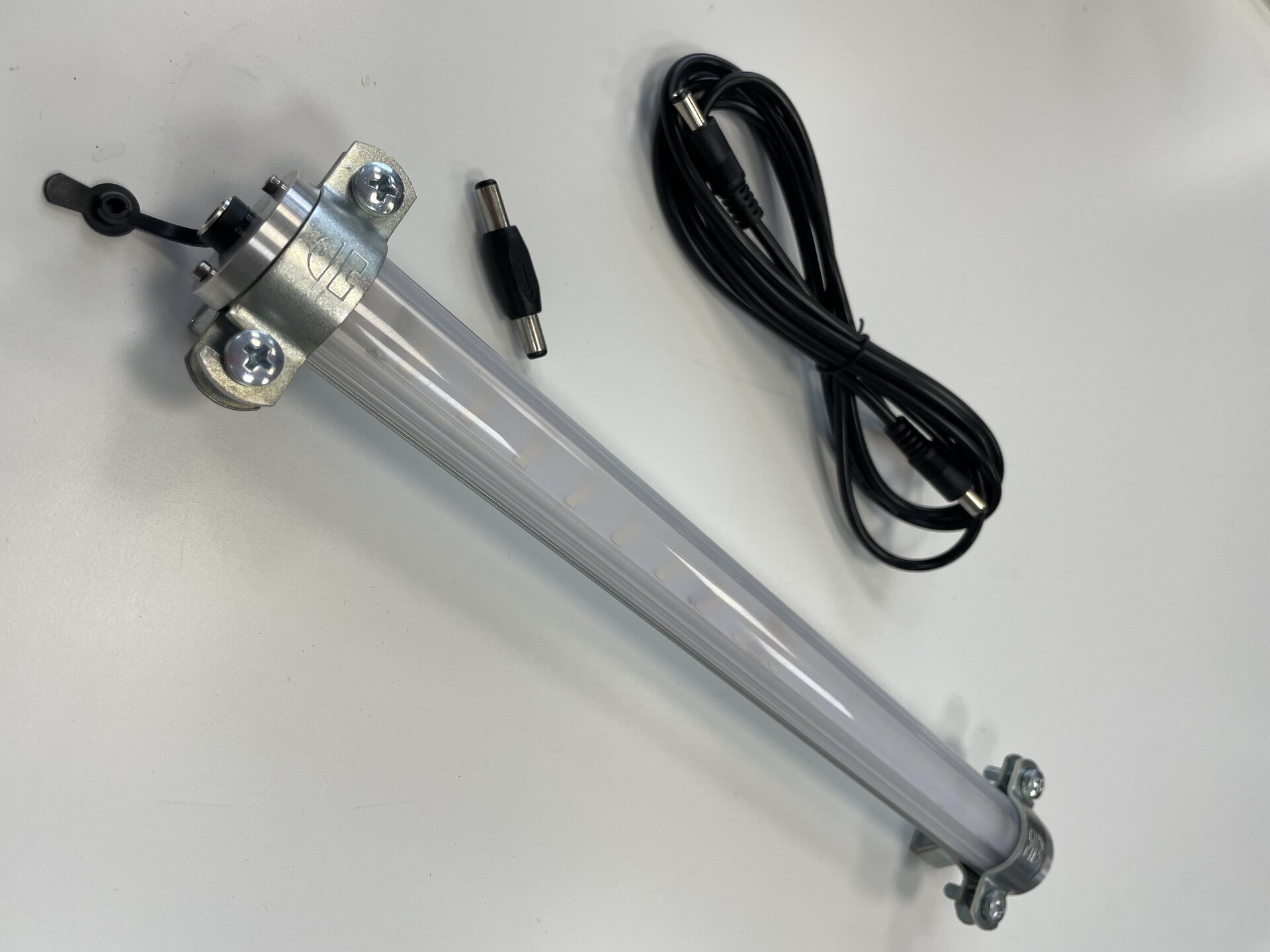

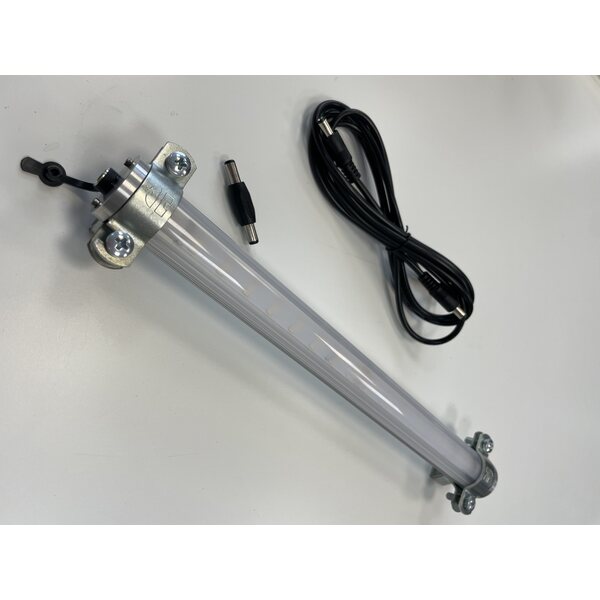

The FL-ECL’s galvanized steel, screw-mounted, openable surface-mounting brackets allow the luminaire to be directed as desired. The mounting brackets are also available with optional magnets, which enable the ECL to be used as a handheld lamp when needed. The 5.5 mm DC female connectors installed at both ends of the luminaire allow for easy installation and daisy-chaining. Up to 33 luminaires can be connected in the same chain, which is sufficient for the needs of even larger electrical switchboards or control rooms.

Technical specifications:
Nominal power: 2.9W
Operating voltage: DC24V
Luminous flux: 415 lm
Luminous efficacy: 143 lm/W
Color rendering index: CRI>80
Color temperature: 4000K
IP rating: IP44
IK rating: IK10
Operating temperature range: -40°C...+55°
Nominal service life: 50,000 h @Ta.:20°C


Certificates and compliance:
CE, RoHS
ETL US Listed (5020028)
Suitable for Wet Locations
Conforms to CSA std. C22.2 No. 250.2:2020 Ed.1
Conforms to CSA C22.2#250.13:2020 Ed.5
Conforms to UL 2108:2015 Ed.2+R:30Dec2021
Conforms to UL 8750:2015 Ed.2+R:7Dec2022
